Description

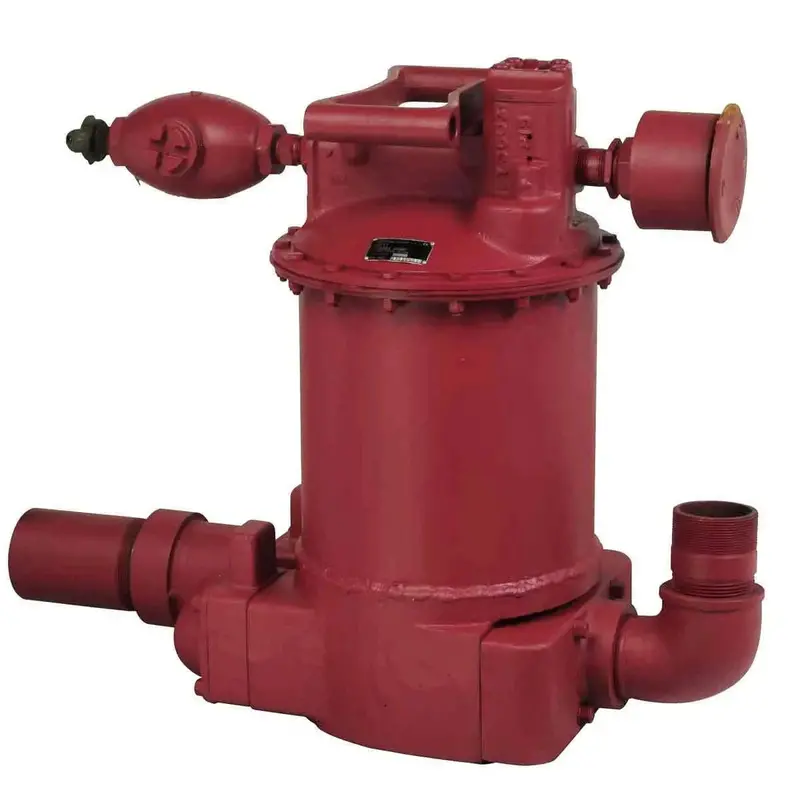

Chicago Pneumatic CP0077 Sludge Pump
Features
- Can handle liquids containing up to 15 percent solids and including particles up to 1” (25 mm) in size
- Suitable for pumping seawater and certain corrosive chemicals
- Should not be used to pump flammable liquids
- Has no motor or diaphragm to wear out because it operates on venturi/ejector principle
- Exhaust muffler – reduces noise level
- No damage if running without load
- Intake hose end must be fully submerged for optimal performance
- Extremely durable
- Long life/low maintenance
- Integral oiler provides continuous lubrication
- Cast iron housing
Applications
- Shaft sinkers, soft tunneling contractors, mines, hydro-electric contractors, site investigation companies, utilities, local authorities, industries (for sump pumping), oil companies, shipping companies, shipyards, water boards, chemical companies
| Chicago Pneumatic CP0077 Sludge Pump Specifications | |
| Model | CP 0077 |
| Max. Suction Lift | 20 ft |
| Max Head | 175 ft |
| Air Consumption (@ 90 psi) |
85 cfm |
| Air Inlet | 3/4″ NPT |
| Air Outlet | 1″ NPT |
| Discharge Inlet | 3″ BSP |
| Discharge Outlet | 2-1/2″ NPT |
| Max Solid Content | 15 % |
| Weight | 152 lbs |
| Part no. | T 024005 |
