Description
Husqvarna DS 250 Core Drill Stand

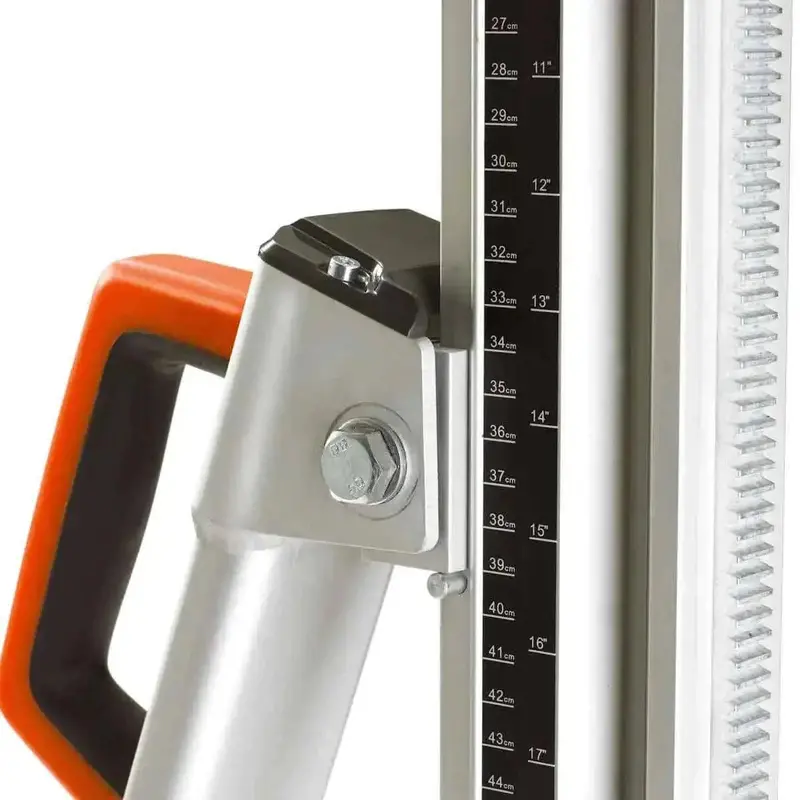

A lightweight aluminum stand with wheels on the base plate, support for the drill bit, and a water collector.
Features
- It comes standard with a combination vacuum/anchor base
- The stand can be tilted from 0 to 45 degrees for angle drilling
- For drilling holes such as channels for ventilation, plumbing, and joints
- For angle and stitch drilling
- V-groove roller carriage allows for accurate alignment that requires minimal adjustment
- Drill holes up to 10″ (254mm) in diameter
- Maximum length of travel: 19″
Technical Information
- Max Bit Capacity: 10-inch
- Base Material Cast aluminum, 4 leveling screws
- Max length of travel: 19″
- Weight: 33 lbs (15 kg)
Benefits
- Light and compact, it is easy to transport and mount the stand
- The two-speed carriage gearbox lets you choose crank speed for optimal performance, depending on the application
- Integrated vacuum base for fast and easy set-up without anchoring
- Equipped with guide rollers that stabilize for accurate drilling, as well as cleaner and straighter holes
- The carriage has a universal quick connection plate for fast mounting and fits most products on the market
- The drill stand is tiltable with a rigid locking system for the back support for reliable and stable angle drilling
- Adjustment screws on the base plate, carriage, and back support can be adjusted with the feed handle
- The stand has a jacking screw on the top for easy clamping of the stand
- Combo base with base and slot gasket standard
